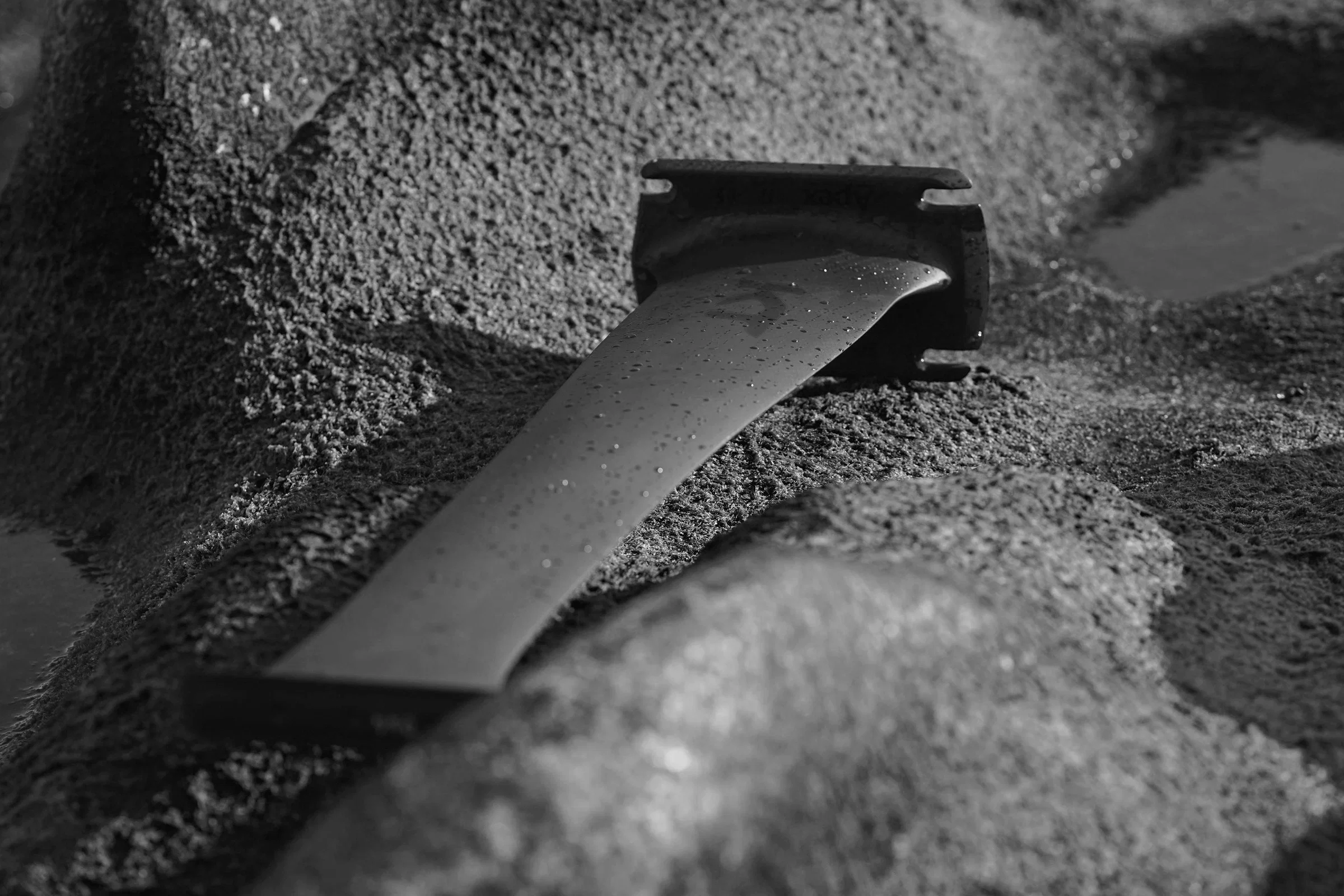

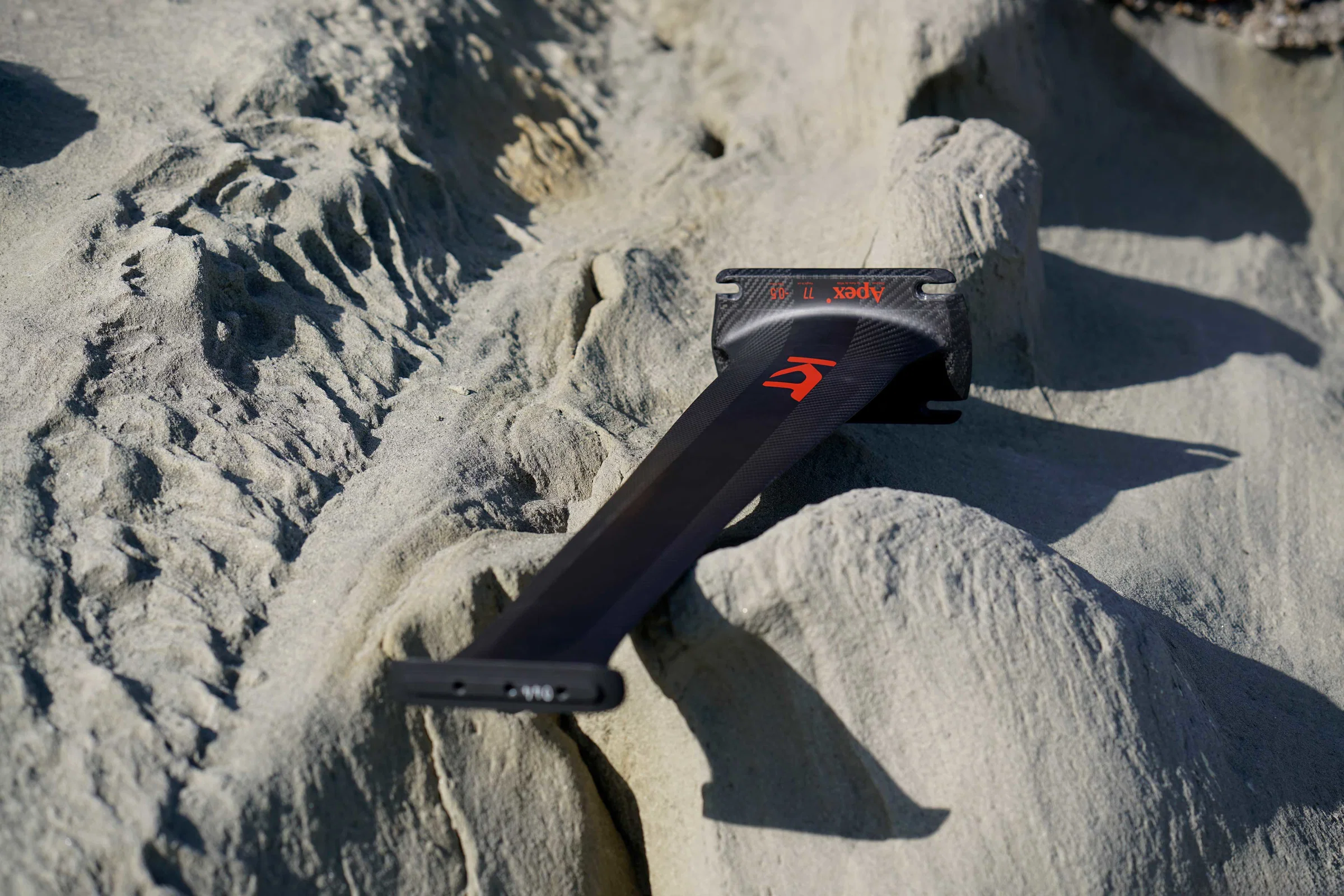

Apex
Ultra High Modulus Carbon
Downwind Race, Prone, Wake, Tow, Wing, Wave, Freeride, Freestyle, Race, Big Wave.
Each size of the Apex is engineered from the ground up around the demands of its specific discipline. The result is a mast that responds exactly the way you need it to, faster, cleaner, and more confidently, no matter how hard you’re pushing your riding.
A forwardoffset, multiairfoil profile is tuned for submerged efficiency and ventilation resistance, while minimizing spray drag during surface contact. The aggressive taper comes from extensive video analysis of how riders engage different mast zones across disciplines and conditions, then refined through flexpattern mapping and airfoil optimization. The payoff is a mast that stays composed through chop, resists ventilation when you’re pushing hard, and delivers a clean, connected feel that lets you ride with total confidence.
The Apex series stands apart because every mast is designed independently from the ground up. Each size gets its own sectional variation, taper, and performance priorities not a scaledup or scaleddown version of a single profile. That allows the 77 to focus on unpowered speed, glide, and maneuverability for downwind racing, performance surf, and wake foiling. The 85 is tuned as the allrounder for wing foiling, wave riding, and freestyle control, while the 95 is built for highspeed wingpowered riding where ventilation resistance, stability through chop, and control at deep lean angles or in big waves matter most.
Across the lineup, the mast uses multiple airfoils along the span, each tuned for low submerged drag, strong ventilation resistance, and minimal spray drag during surface contact. Designed by Kane de Wilde, the leaner leading edge with thickness carried farther back helps the mast pierce the surface more cleanly, reducing spray and keeping the ride smoother and quieter.
Above the waterline, Apex incorporates a forwardswept design for structural reasons, aligning the carbon fiber with the downandforward load path riders generate while winging. This reduces twist and improves efficiency through the baseplate zone, keeping the mast feeling solid and predictable under heavy load. The trailing edge stays close to vertical with a subtle taper toward the bottom for clean release and stability.

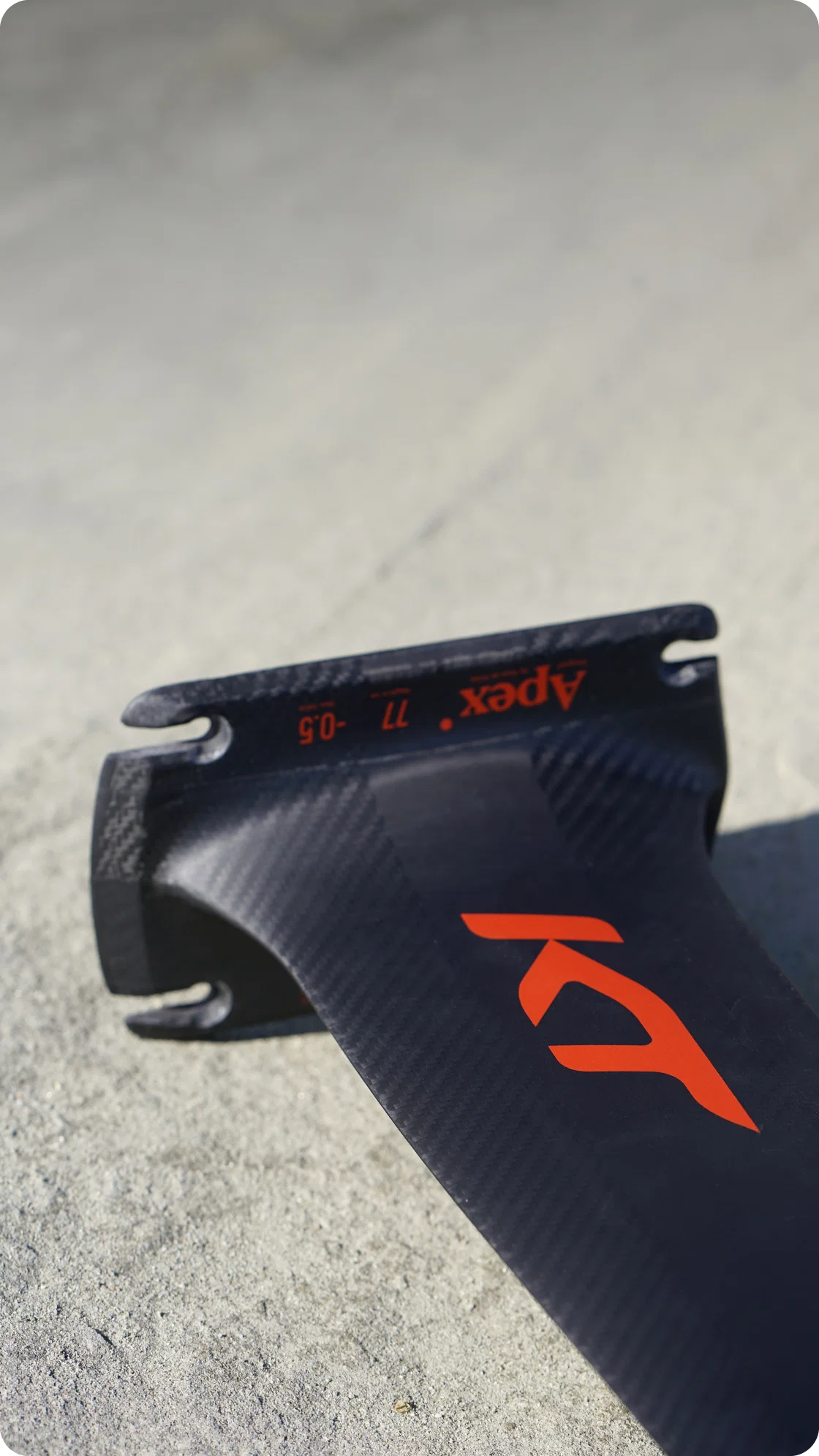

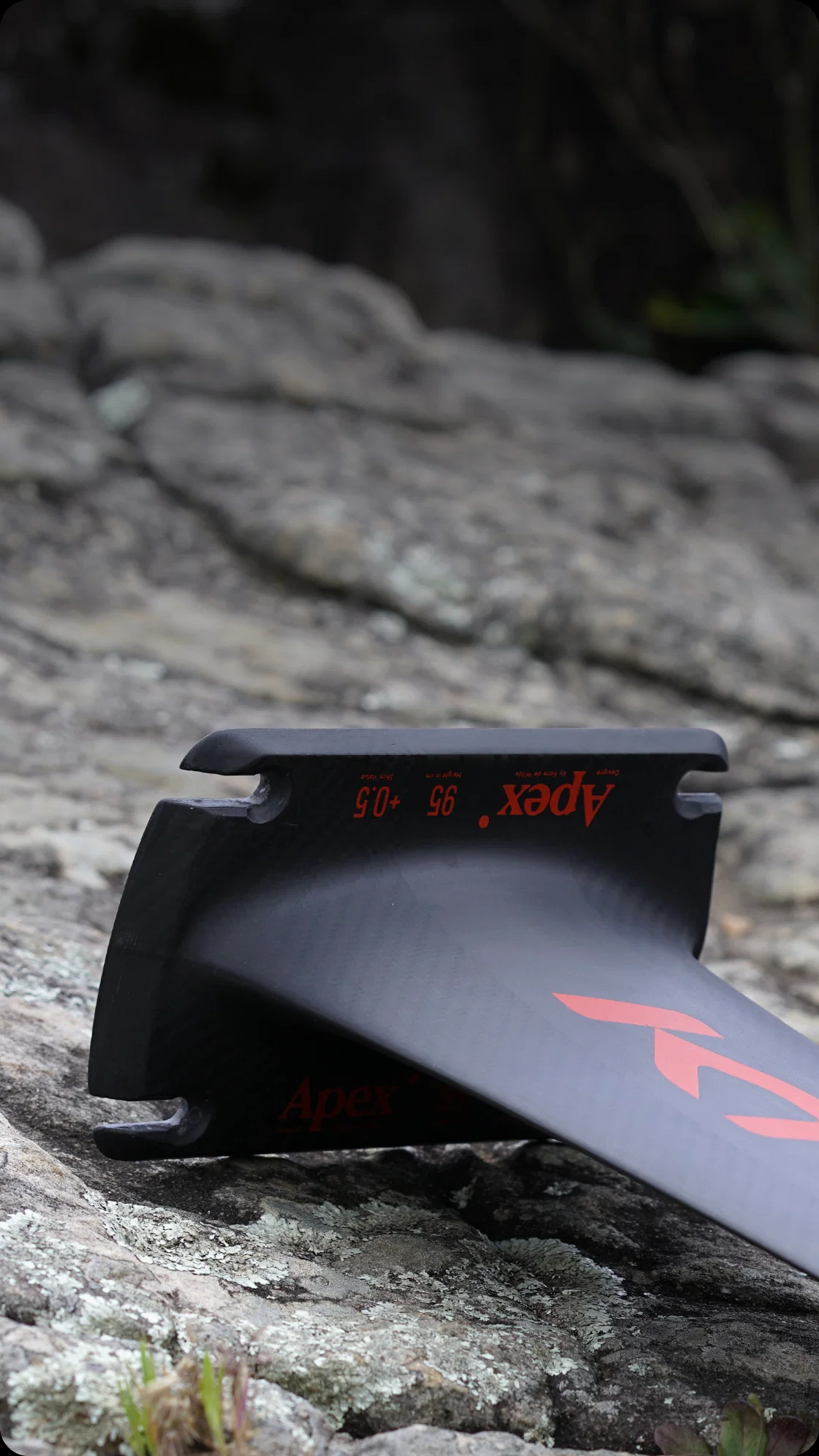

All sizes feature a forwardoffset baseplate to reduce swing weight and create a more direct, connected feel to the foil. The updated baseplate fairing blends more cleanly into the plate, lowering drag for smoother touchdowns and quicker, more efficient takeoffs.
Feeling.
Apex delivers an unmistakably stiff, hyperresponsive ride that gives you a direct, intuitive connection to the foil. Every bit of load translates into clean, predictable feedback, so you always know exactly where the foil is and how hard you can push it. Refined airfoil transitions and a carefully tuned taper keep the mast feeling efficient and composed through chop or the occasional surface touch, while the forwardoffset baseplate brings a more balanced, lockedin feel to the entire setup. It’s the kind of control that lets you commit with confidence and stay fully focused on your line.

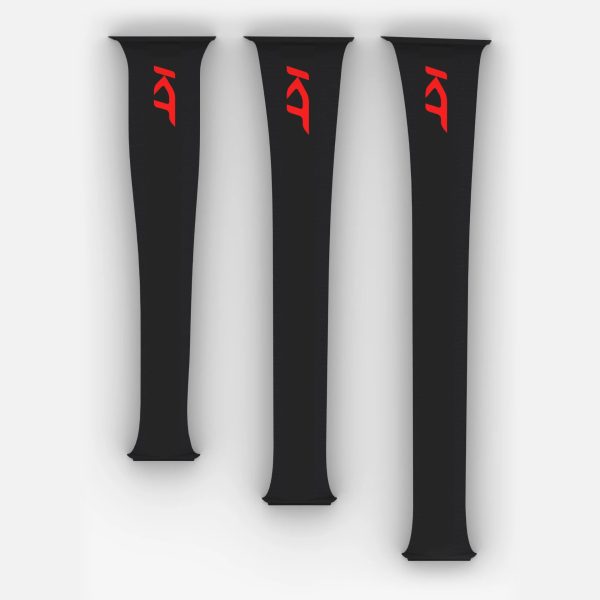

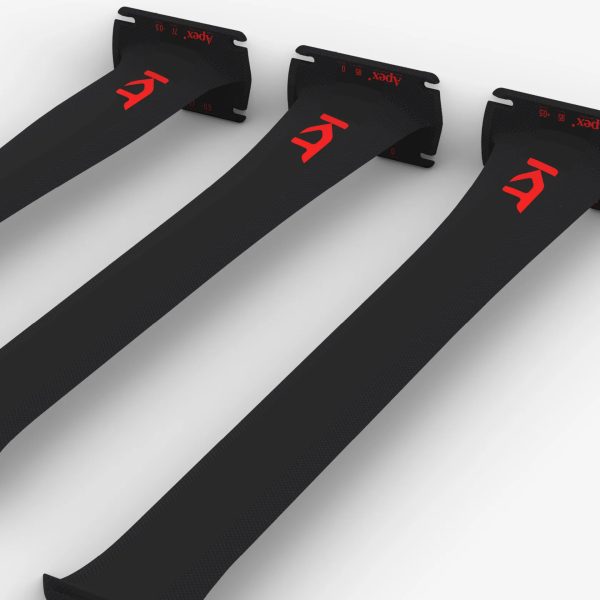

Stock Sizes.
77 cm. Optimized for pure straightline speed and effortless downwind glide, this Apextuned design gives you the freedom to push harder without losing control. It stays quick and responsive under your feet, with enough maneuverability and forgiveness to keep prone foiling smooth, stable, and confidencebuilding. If you’re chasing speed but still want a wing that supports your progression, this is the one built to let you open it up.
85 cm. Dialed in for riders who want total confidence in wing foiling, wave riding, and freeride flow, this design keeps you lockedin and in control when the water gets rowdy. The straighter midsection gives you clean, predictable power through every carve, while the specialized top airfoil cuts drag at deep lean angles so you can commit harder without worrying about ventilation. The payoff is a smoother, steadier ride through chop and a board that responds exactly the way you want when you’re pushing your lines.
95 cm. This flagship race mast is built for riders who demand unwavering speed and control at the highest level. Tuned for maximum topend velocity, rocksolid yaw stability, and exceptional ventilation resistance, it gives you the confidence to stay fully powered when the course gets chaotic. A broader sweet spot than the 85 keeps the mast planted and predictable through bigger chop and deeper lean angles, letting you commit harder, ride faster, and stay locked into your line with total trust.
Apex is designed and engineered to cut drag exactly where you feel it most through the bottom threequarters of the mast, where realworld riding happens. The result is a cleaner, faster, more efficient run with noticeably less spray drag when you’re carving, pumping, or driving hard downwind.
Its dynamic crosssectional airfoil and aggressive taper unlock higher speeds with ease, giving you powerful acceleration while pumping and a smooth, controlled topend that stays predictable even when fully loaded. Apex doesn’t just reduce drag, it makes the whole ride feel lighter, quicker, and more responsive under your feet.
Shape & Outline.
Apex uses a multiairfoil mast profile with an aggressive taper, purposebuilt to keep submerged drag low, boost ventilation resistance, and cut down surfacepiercing spray drag. It stays clean and efficient exactly where you load it most, so the ride feels faster, quieter, and more controlled.
Above the waterline, the forwardswept piercing zone allows for a more forward baseplate position, creating a tighter, more direct structural load path. That translates into a setup that feels instantly connected and balanced, letting you drive harder, lean deeper, and trust the mast to stay lockedin when conditions get demanding.
Geometry.
The intentional taper and chord distribution give Apex its balance of stiffness, low drag, and precise maneuverability. By tuning these sections independently, the mast maintains rocksolid stability while still delivering the yaw and roll responsiveness riders rely on for smooth, controlled direction changes. The thicker, broader upper section delivers the stiffness and stability you feel when loading the mast at speed, while the slimmer, tighter lower section cuts drag and boosts roll and yaw maneuverability. It’s a balance that keeps the mast feeling powerful when you’re driving hard, yet surprisingly agile and reactive when you’re carving or redirecting.
Performance.
The Apex Mast stays planted and predictable at high speeds and deep lean angles, giving you the confidence to push harder. The refined airfoil sections boost ventilation resistance, while the mast’s stiffness keeps the foil tracking cleanly through aerated water and turbulence. The result is a setup that feels lockedin, stable, and fully in control even when conditions get chaotic.
Efficiency.
Optimized chord and taper reduce submerged drag exactly where it counts, letting Apex slip through the water with highlevel efficiency without relying on extreme thinness. The thickness and chord profiles shift progressively along the mast, minimizing spray drag near the surface and keeping the ride clean, quiet, and fast. The result is a mast that feels faster, more responsive, and more efficient in realworld conditions.
Agility.
Apex is designed and built to feel faster and more responsive than its thickness suggests, pairing reduced drag with a stiffer, more direct carbon structure that reacts instantly under load. The forwardset baseplate trims swing weight and brings the center of mass closer to your feet, making directional changes quicker, cleaner, and more intuitive. The whole setup feels more connected to the foil, giving you a sharper, more precise ride with less effort.
Construction.
Built with Ultra-High-Modulus Carbon, Apex delivers a level of stiffness and responsiveness you feel the moment you load the foil. The layup is engineered to align fibers with the primary load paths, boosting torsional rigidity and reducing flex under complex angles of pressure. The result is a mast that stays solid, direct, and predictable even when you’re pushing hard. An Ultra High Density Core and Stainless Helicoil Inserts add longterm durability while creating the most direct, secure connection between the foil and the board. Every component works together to give Apex its crisp, lockedin feel and longlasting structural integrity.
Engineering.
Forward Shifted Base Plate.
• New baseplate fairing updated, with a lower drag blend into the plate for cleaner take-offs and smoother touchdowns.
• Brings the center of mass closer between to your feet
• Improved Balance
• Reduced Swing Weight
Aggressive Leading Edge.
• Tighter radius for increase piercing
• Ventilation Resistance
• Cut downs surface‑piercing spray drag
• Refined mast shaping

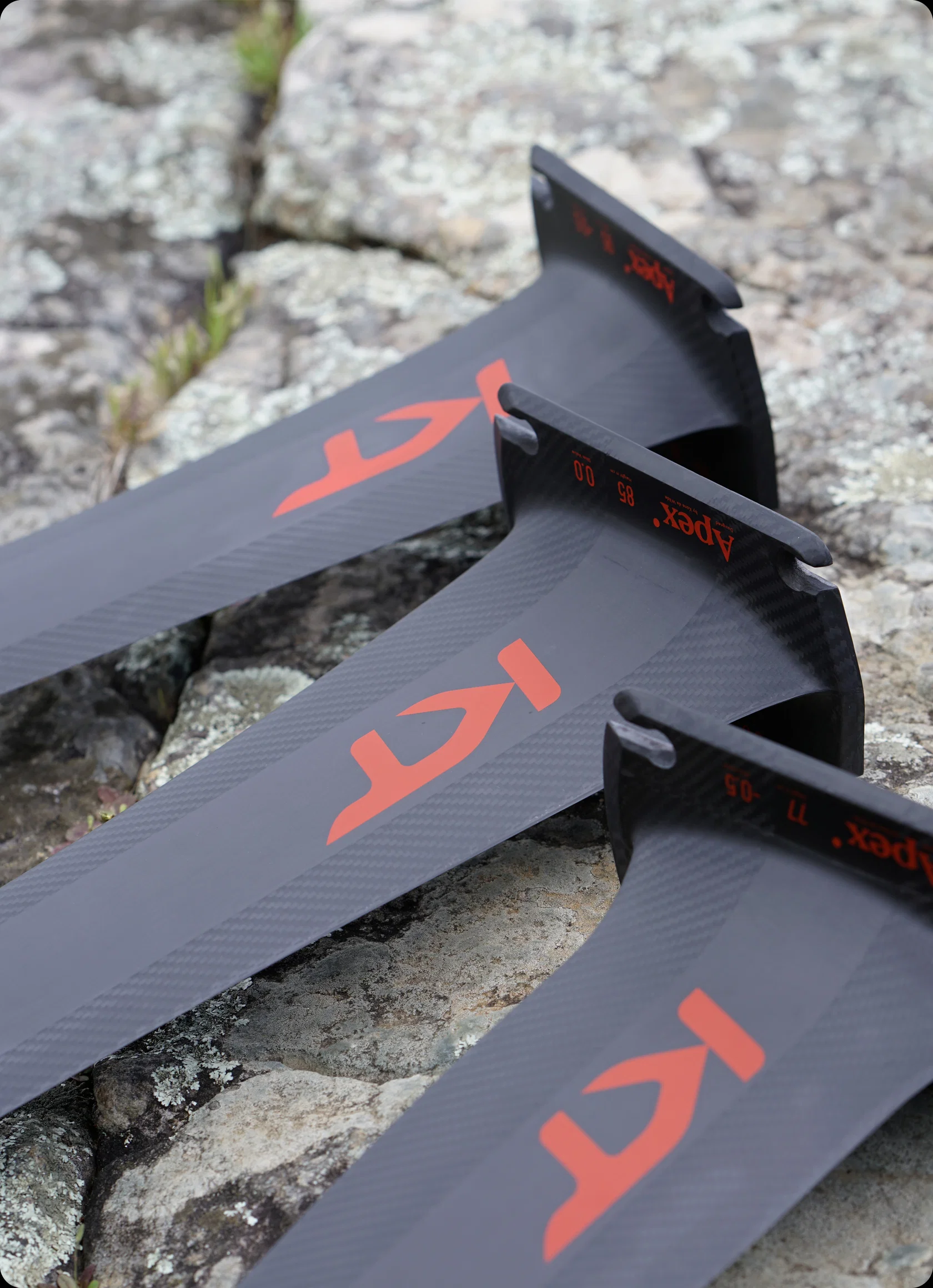

Optimum Performance Section.
Fast. Efficient.
Up To 35% Reduced Drag
Submerged.
• Less Wetted Surface Area
• Reduced Chord
• Reduced Drag
• Increased Efficiency
• Enhanced Manoeuvrability
• Connected Feel
• Faster Roll Response
Stainless Steel Coil Inserts.
• Long‑term Durability And Reliable Thread Strength
77 Centimeters.
Refined Chord & Profile Sections.
• Optimized for Straight‑line Speed
• Manoeuvrability and Forgiveness
• Increased Stiffness
• Faster Response and Handling
• Reduced Drag and Increased Efficiency

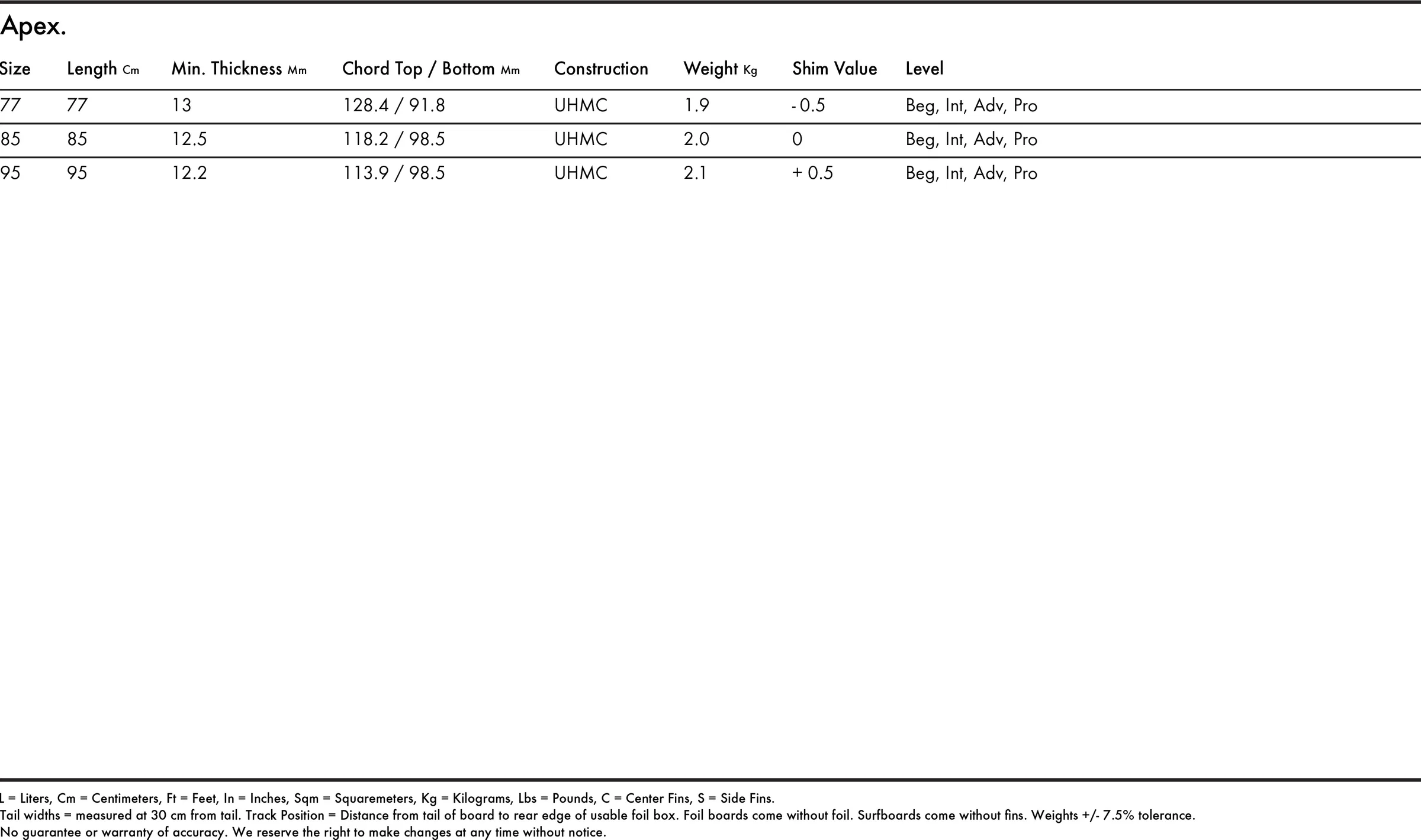

Chord.
77 cm
Top 128.4 mm
Bottom 91.8 mm
Profile.
77 cm
Top 15.8 mm
Bottom 13.3 mm
85 & 95 Centimeters.
Refined Chord & Profile Sections.
• Increased Glide
• Improved Acceleration and Low-End Power
• Direct Control
• Increased Stiffness
• Faster Response and Handling
Chord.
85 cm
Top 118.2 mm
Bottom 98.5 mm
95 cm
Top 113.9 mm
Bottom 98.5 mm
Profile.
85 cm
Top 14.1 mm
Bottom 13.2 mm
95 cm
Top 13.5 mm
Bottom 12.9 mm

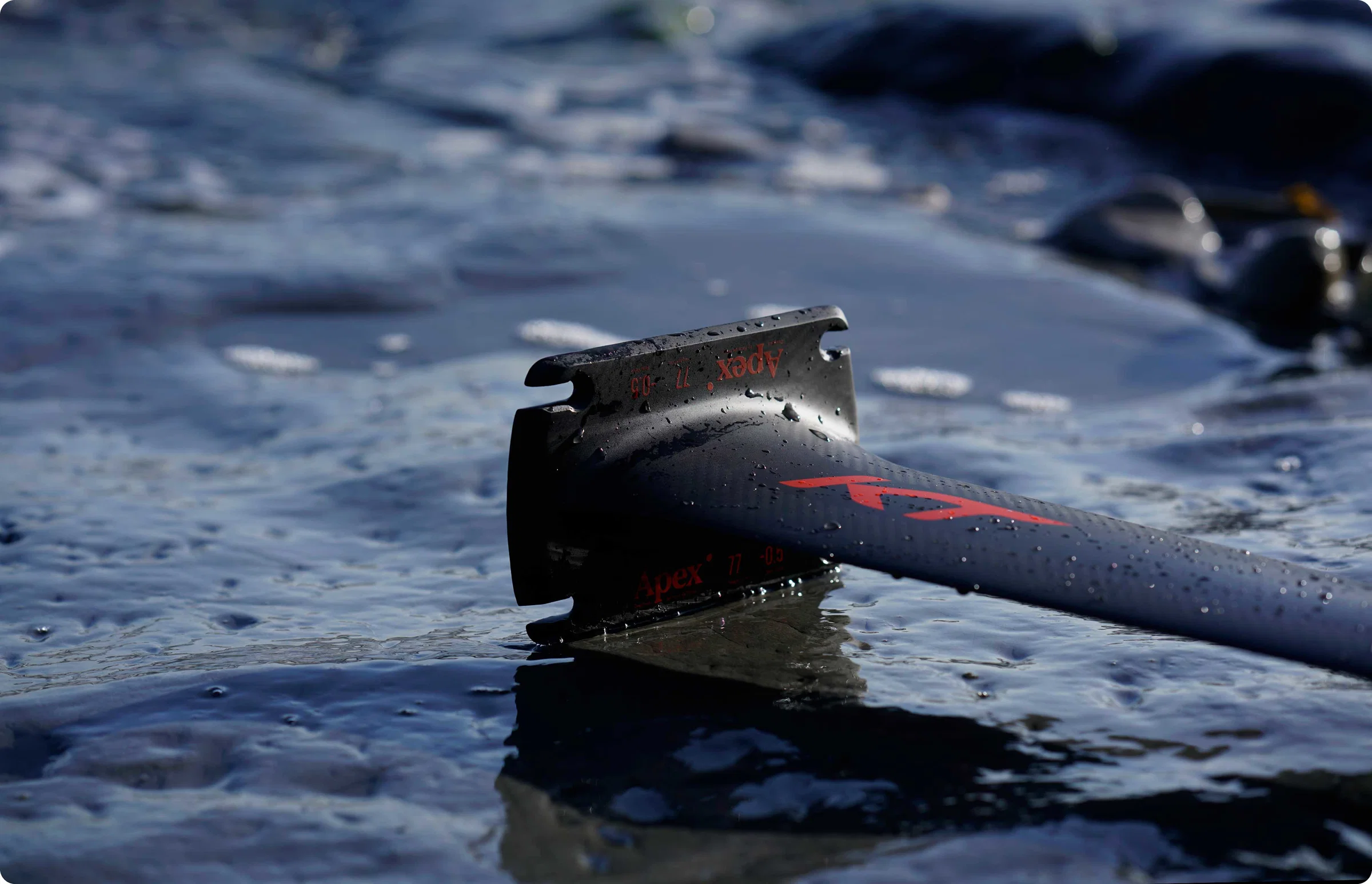

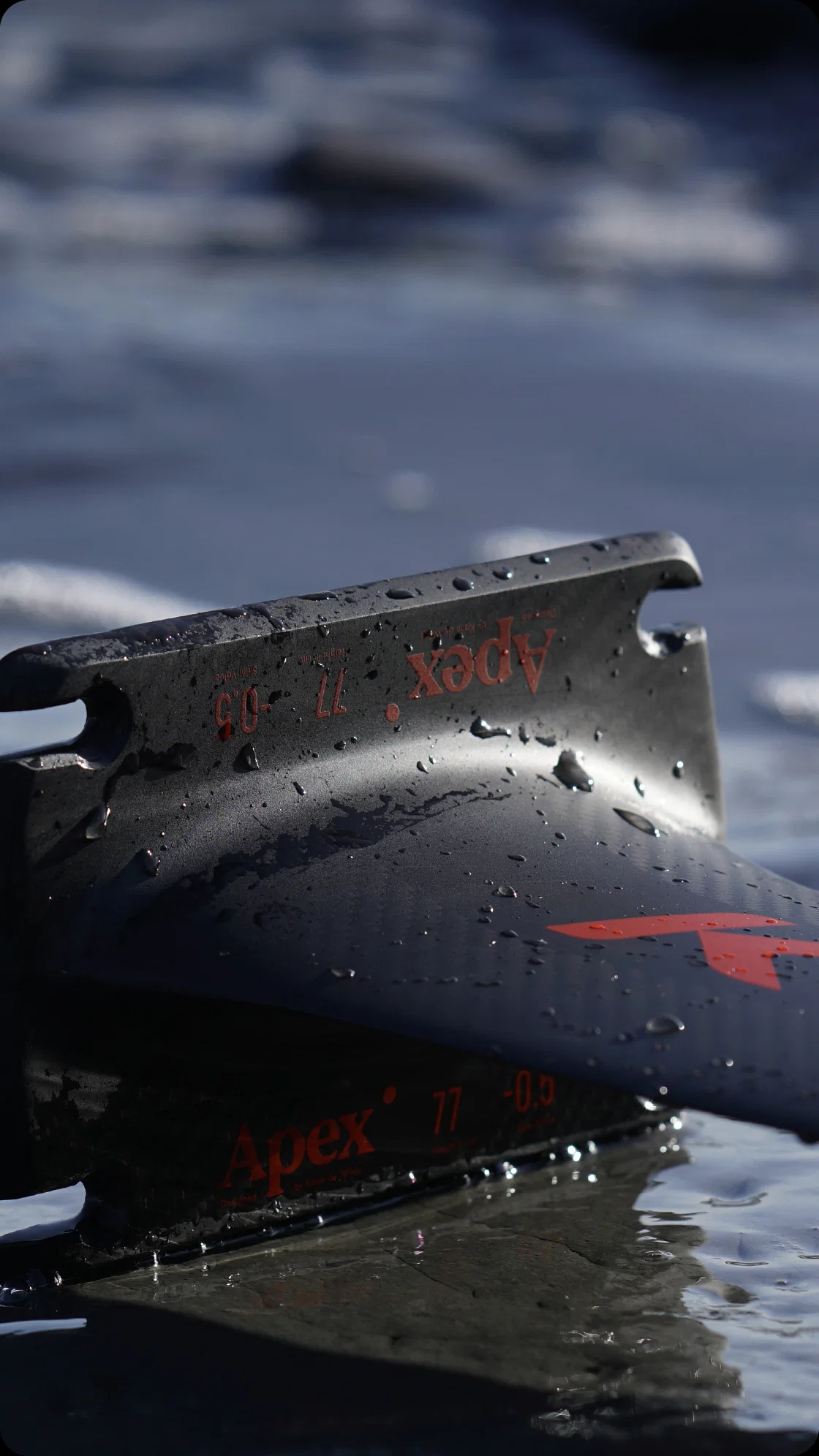

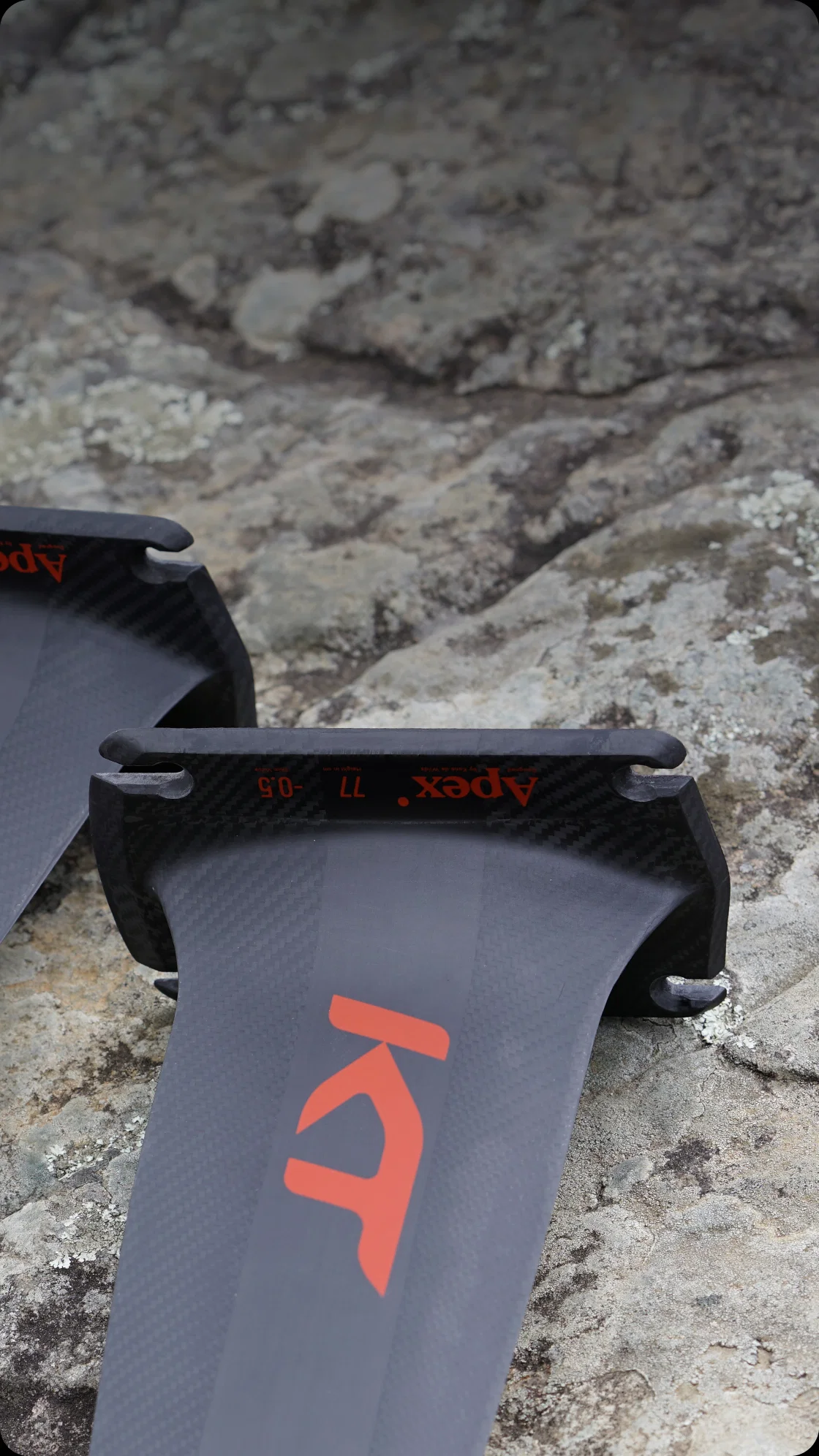

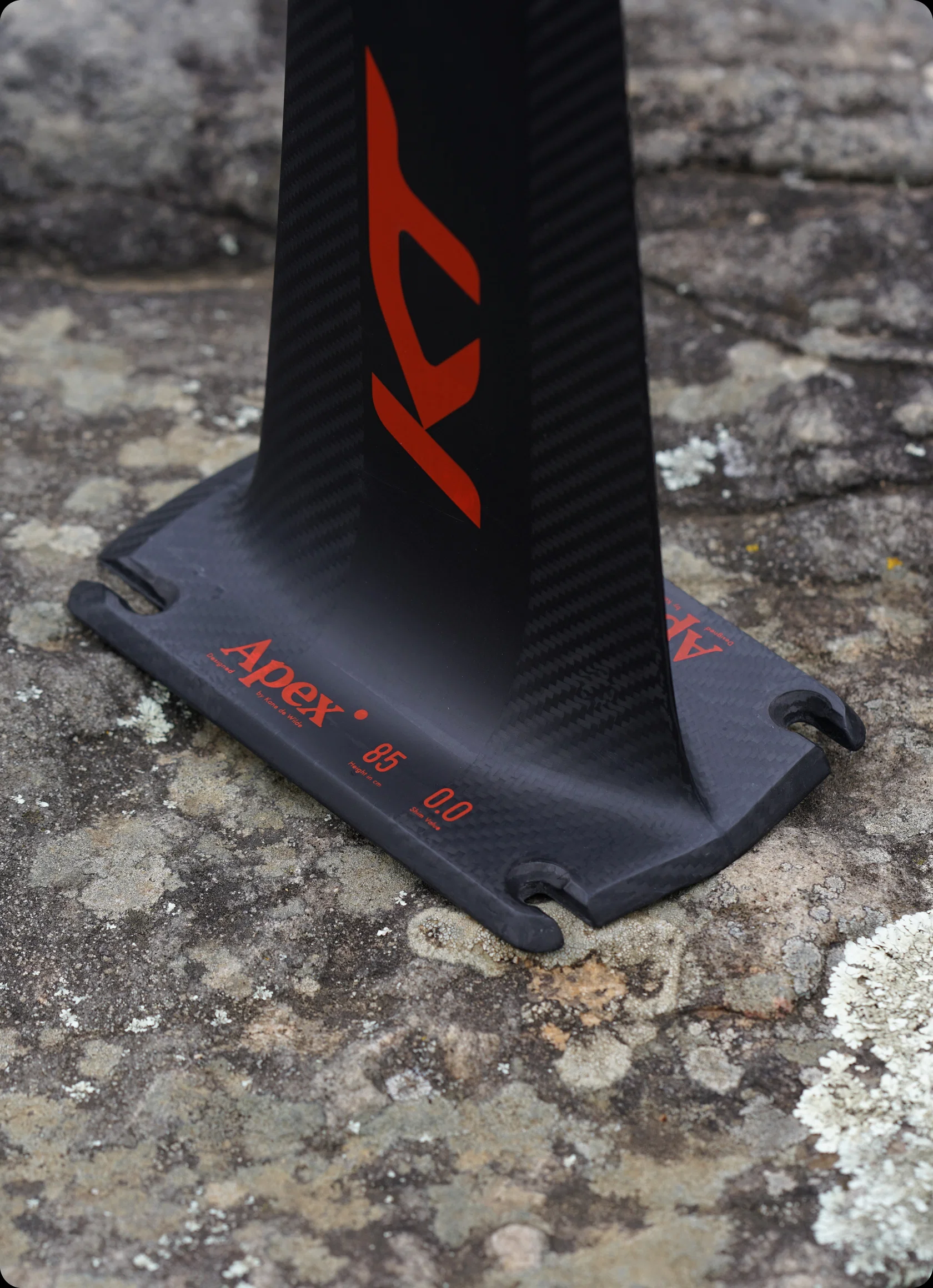

Forward Shifted Base Plate.
A redesigned, forward-biased base plate positions the masts center of mass between to your feet, creating a more intuitive connection between rider and mast. This shift enhances control during pumps, carves, and rapid transitions, making the mast feel like an extension of your body.
New Low Drag Baseplate Fairing.
The updated fairing blends seamlessly into the plate with a cleaner, more hydrodynamic profile, reducing drag during takeoffs and smoothing out touchdowns. By managing water flow more efficiently, it helps the foil rise earlier and recover more gracefully from surface contact.
Improved Balance.
With mass distribution optimized around the rider’s stance, the setup delivers greater pitch stability and more predictable handling. This translates to steadier, easier turning, and a more forgiving ride in turbulent or high-energy conditions.
Reduced Swing Weight.
By bringing weight forward and between the rider’s feet, the Apex reduces swing weight, resulting in quicker roll response and snappier maneuverability. Whether linking bumps or carving tight turns, it reacts faster and feels lighter underfoot.

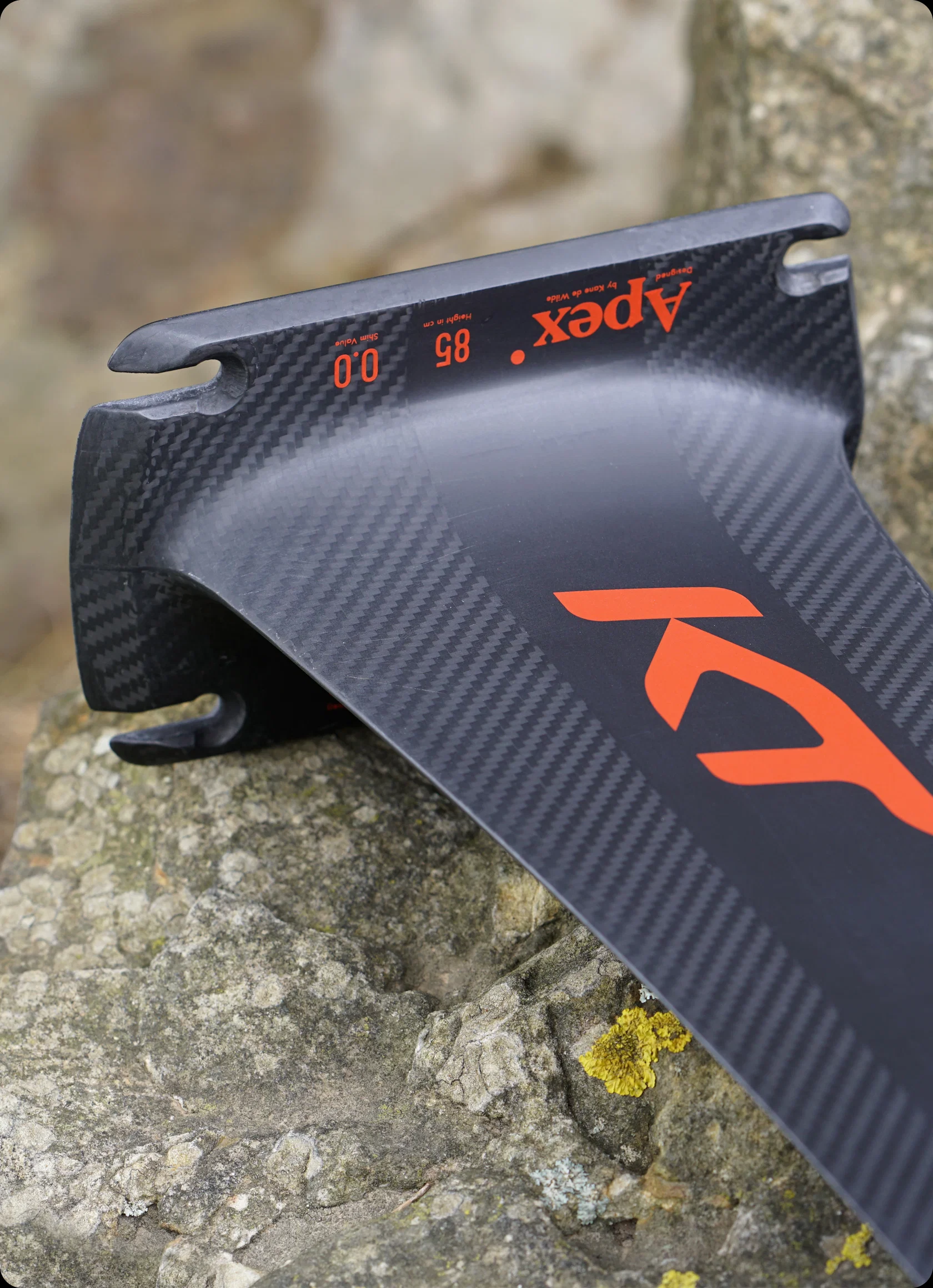

Aggressive Leading Edge.
A bold, forward-driving leading edge that slices cleanly into the water, maximizing initial bite and stability. This design helps the mast lock in sooner, giving riders a more confident, responsive feel during acceleration and takeoff.
Cut Downs Reduce Surface Piercing Spray Drag.
Strategically sculpted cut-downs disrupt spray before it forms, reducing drag and preventing energy loss near the surface. The result is a smoother, quieter ride with better efficiency during touchdowns or high-angle maneuvers.
Refined Mast Shaping.
A carefully optimized mast profile improves laminar flow, reducing ventilation and increasing overall glide. This refinement boosts stability, responsiveness, and speed while maintaining predictable handling across a wide range of conditions.

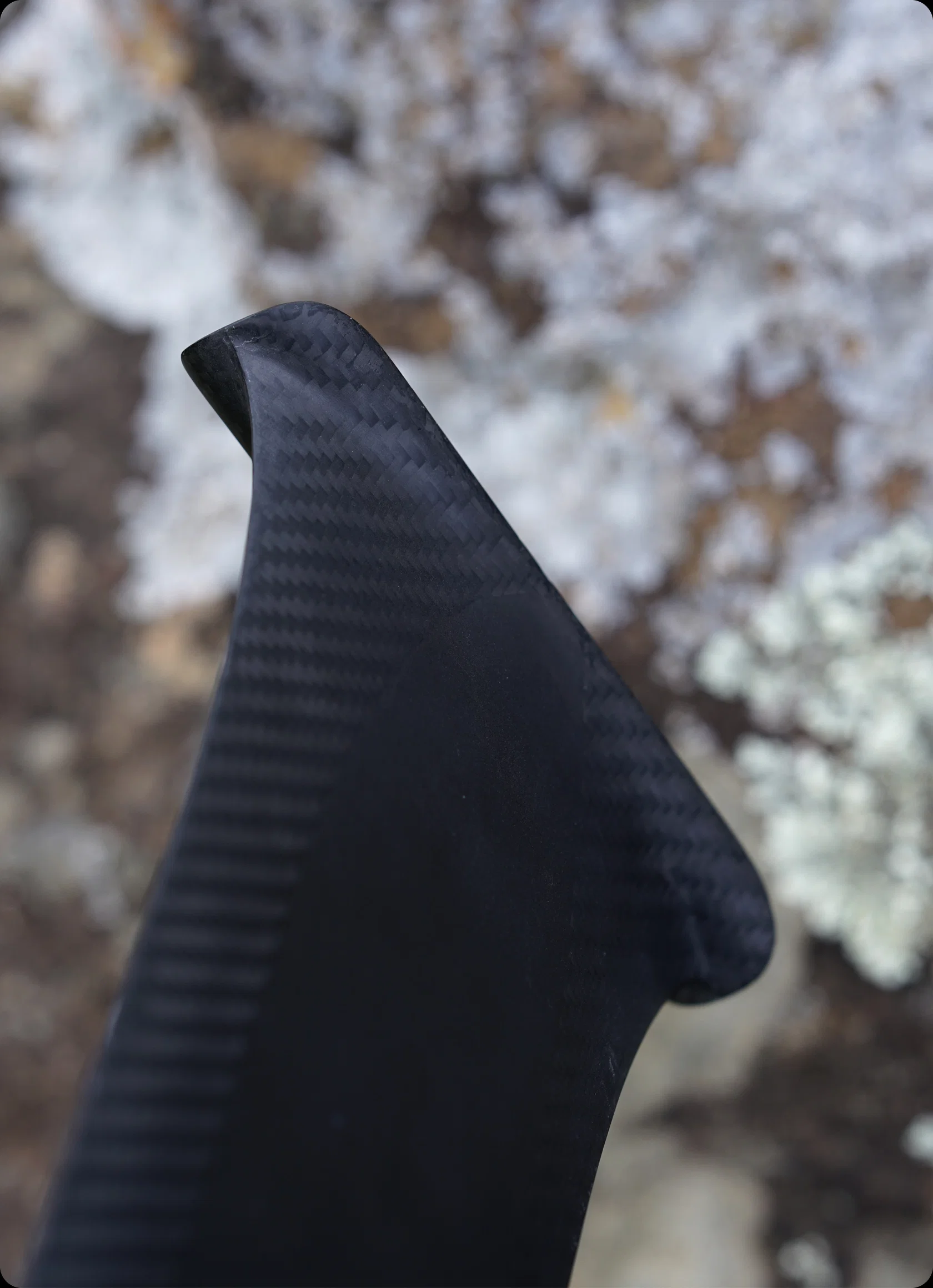

Submerged.
A performance-driven, low-drag mast built for riders who want sharper handling, cleaner flow, and a more connected feel beneath their feet.
Shorter Chord for Reduced Drag.
A compact, reduced-chord design cuts wetted surface area, slashing drag for longer glides, easier pumps, quicker acceleration, and higher sustained speed.
Faster Roll Response.
By reducing rotational inertia, the Apex makes rolling from rail to rail faster. This gives you snappier transitions, more responsive carving, and a lively, energetic ride that rewards precision and creativity.
Lower Wetted Surface Area.
With less surface area in contact with the water, the Apex experiences lower frictional drag, translating into higher top-end speed and improved glide. This also enhances energy efficiency, making it easier to maintain speed in marginal conditions
Enhanced Maneuverability & Response.
The shorter chord and reduced mass moment create a mast that reacts instantly to rider input. You get tighter turning radius, quicker pitch corrections, and a more agile feel, ideal for surf foiling, winging, and dynamic downwind riding.

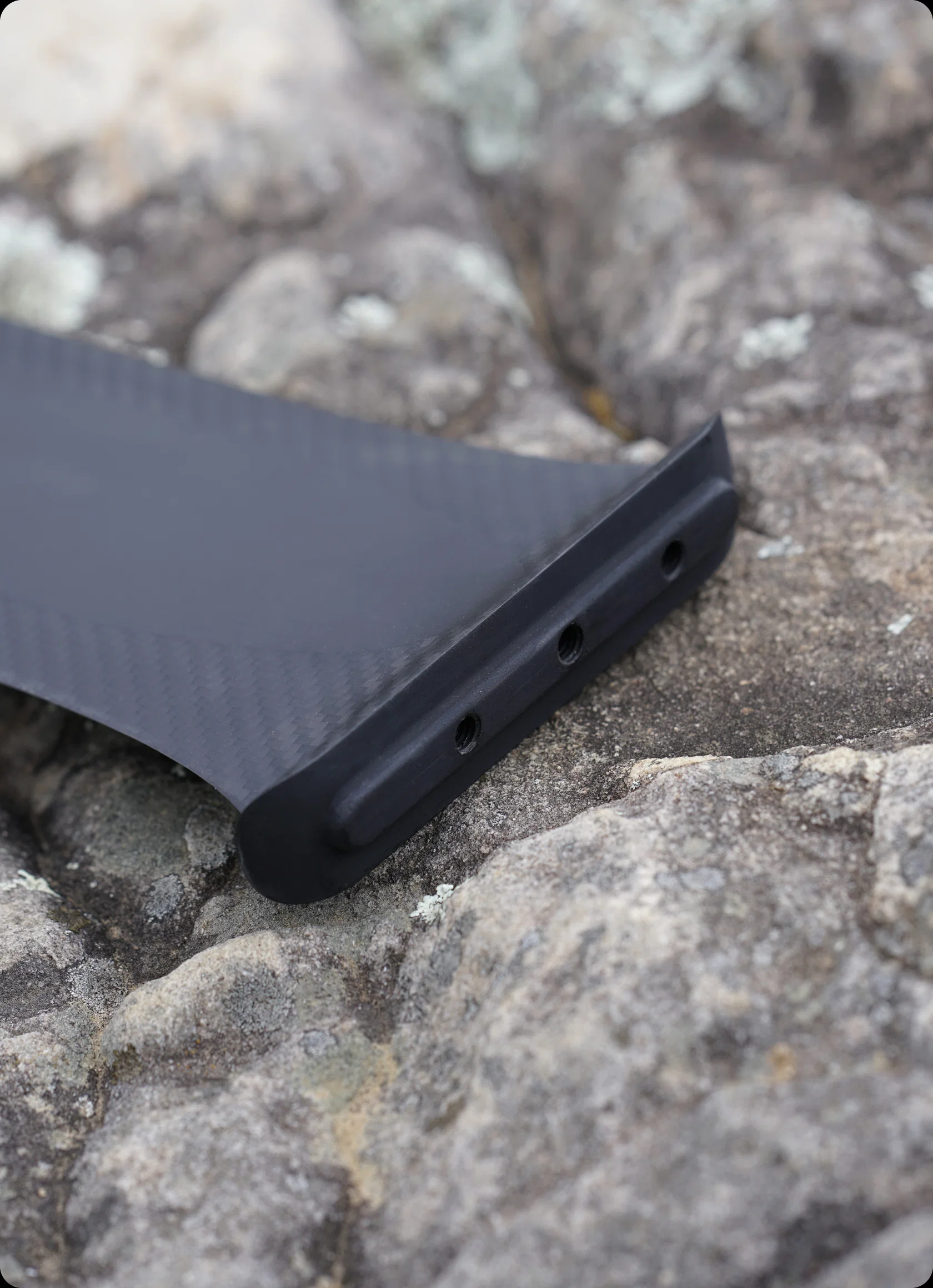

Stainless Steel Coil Inserts.
Engineered for riders who demand equipment that lasts, stainless steel coil inserts deliver long‑term durability and unwavering thread integrity.
Reliable Thread Strength.
The stainless‑steel coil structure reinforces every connection point throughout the entire KT foil system, preventing thread wear, galling, and pull-out over years of assembly and disassembly. This ensures consistent torque retention, secure hardware engagement, and a worry‑free setup even under high‑load riding.
Built for Longevity.
Corrosion-resistant stainless construction protects against saltwater exposure and repeated stress cycles, giving your gear a longer service life and maintaining structural confidence session after session.
UHM & UD Carbon.
The Apex is built with Ultra High Modulus Carbon, delivering an ultra-stiff structure that holds its shape under pressure for a sharper, more responsive feel and uncompromising performance.
UD Carbon Strip.
Uni-Directional carbon fiber with parallel-aligned fibres delivers peak directional strength, superior stiffness-to-weight performance, and a clean, smooth, solid, stealth-grade finish.
Direct Control.
Feel every input convert into an immediate, low-latency response, driven by a structure optimized for efficient energy transfer.

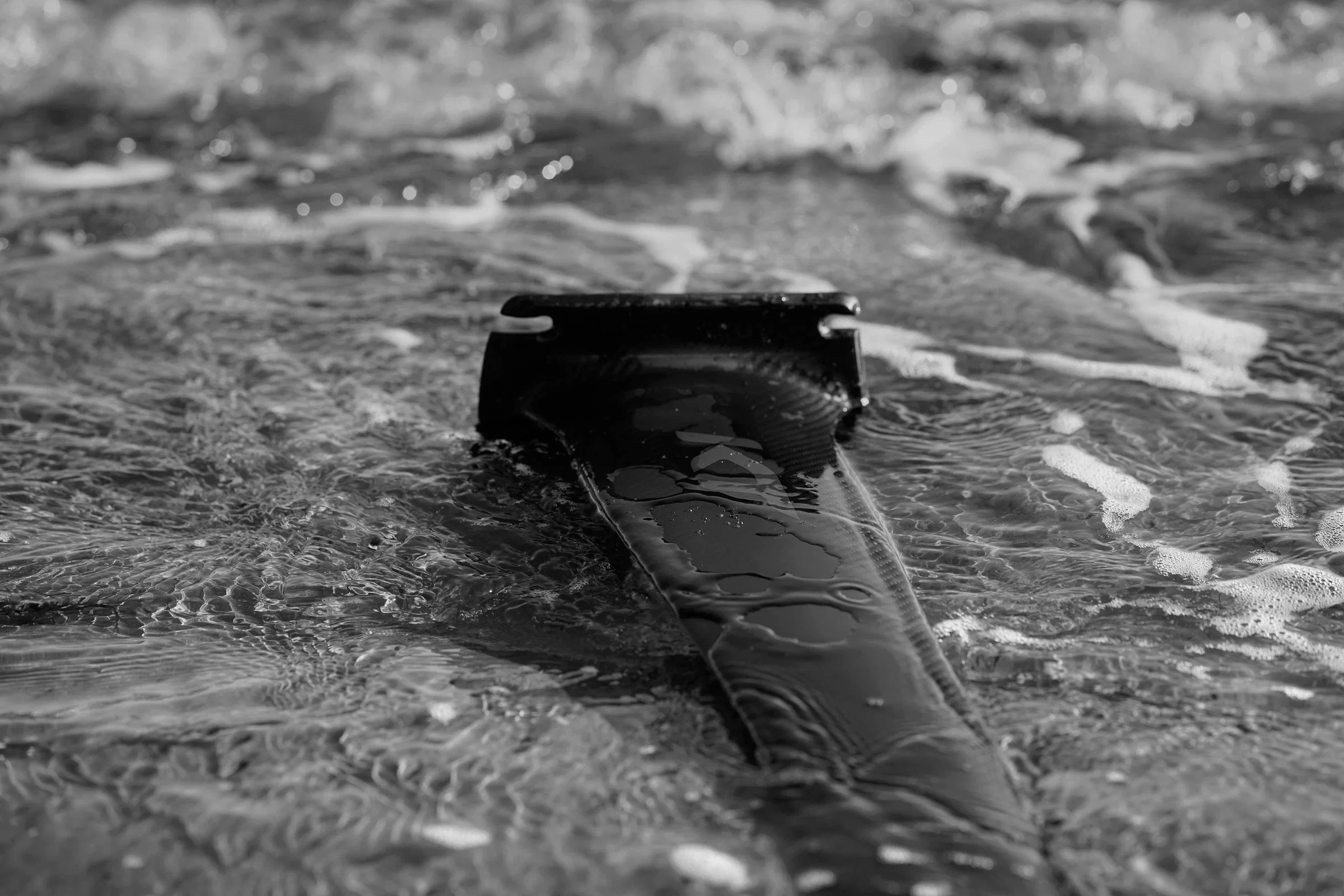

Apex.
Ultra High Modulus Carbon.
The Mast. Radical, new, engineered for maximum efficiency, instant response, explosive speed, and flawless balance.
Sizes: 77, 85, 95 cm.

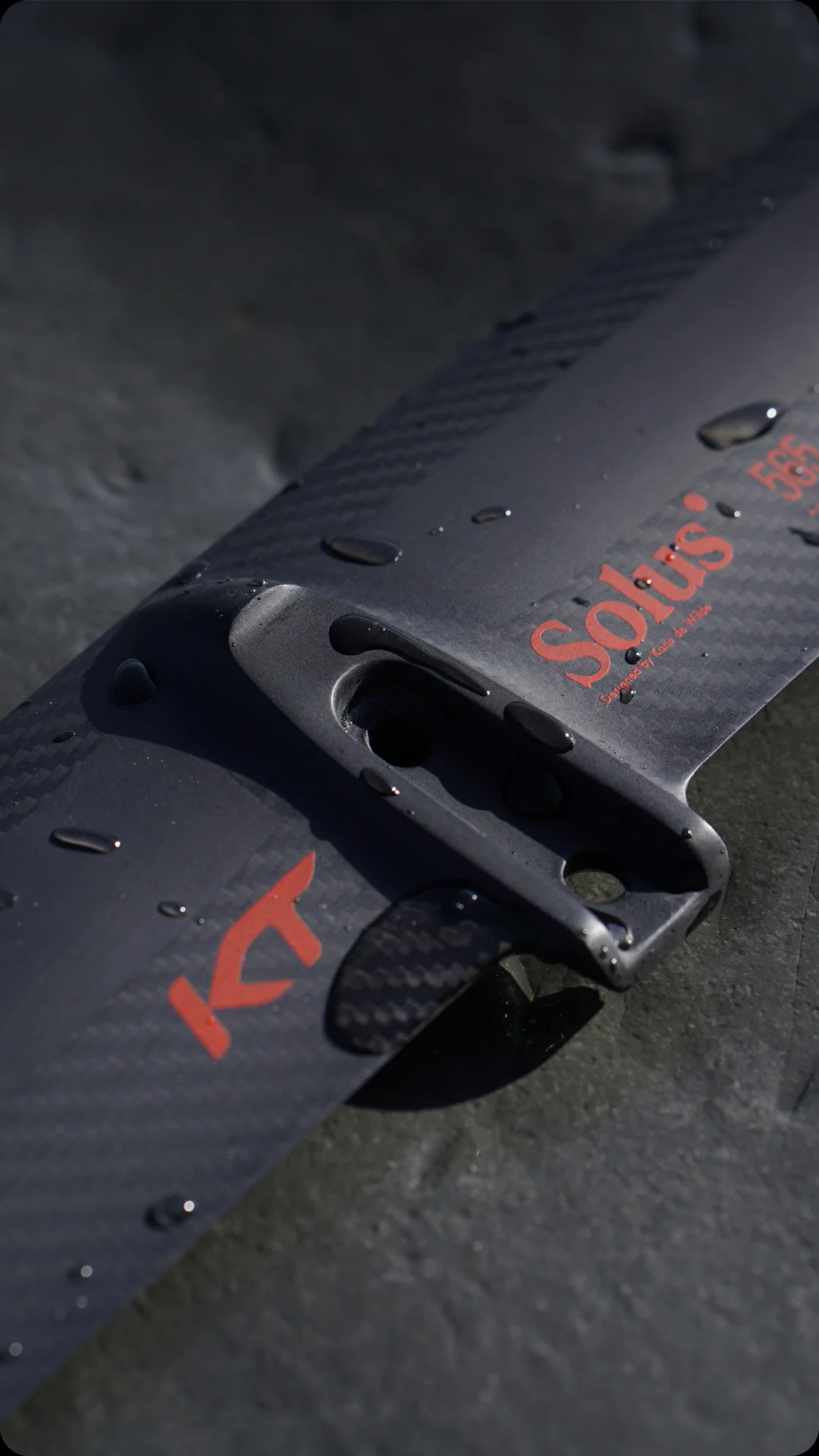

Solus.
